Features a movable bridge that travels along a set of parallel rails mounted on either the walls or elevated columns of the workspace. This crane consists of a hoisting mechanism, which is typically a wire rope hoist or chain hoist, mounted on a trolley that can move across the bridge, allowing it to access wide areas across the facility.

Prolift Crane & Hoist Inc. provides complete turnkey overhead crane solutions—from concept to commissioning. We offer in-house engineering and design, custom fabrication, professional installation, and comprehensive after-sale service for all varieties of overhead bridge cranes. Based in Ontario, we proudly serve clients across the province and support projects throughout Canada through our network of trusted dealer partnerships. We manufacture and supply lifting systems ranging from 250 lbs workstation cranes to 150-Ton overhead bridge cranes, ensuring the right solution for any application—from light-duty production lines to heavy industrial environments.

PRO LIFT CRANE & HOIST

Types of Bridge Cranes

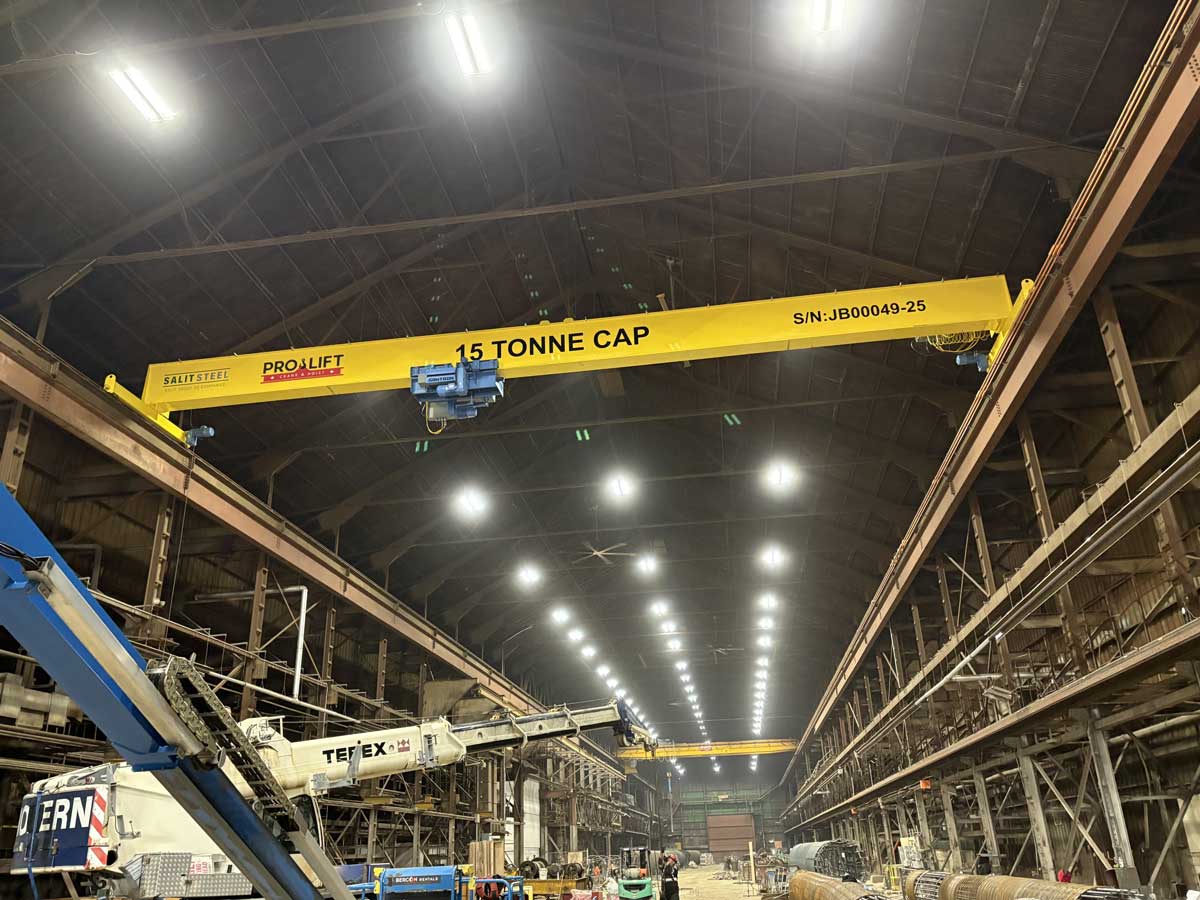

  • Top Running Single Girder Bridge Crane

    This type of crane has a single bridge girder that supports the hoist and trolley mechanism, and it travels on top of the runway beams. The runway beams are typically elevated on the columns of the building. A top-running single girder crane is commonly used for lifting lighter to medium loads, generally up to 20 tons and with a span of up to 80 feet. This design is efficient in terms of cost and space, as it requires less material in construction and can operate in spaces with limited headroom.

  • Double Girder Top Running Bridge Crane

    Similar to the single girder version but features two bridge girders for supporting the trolley and hoist. This design allows it to handle heavier loads and longer spans, often more than 60 feet and is capable of carrying very heavy loads exceeding 100 tons. Double girder top running cranes are typically used in heavy manufacturing, where they can also support attachments like walkways and cabs due to their robust structure.

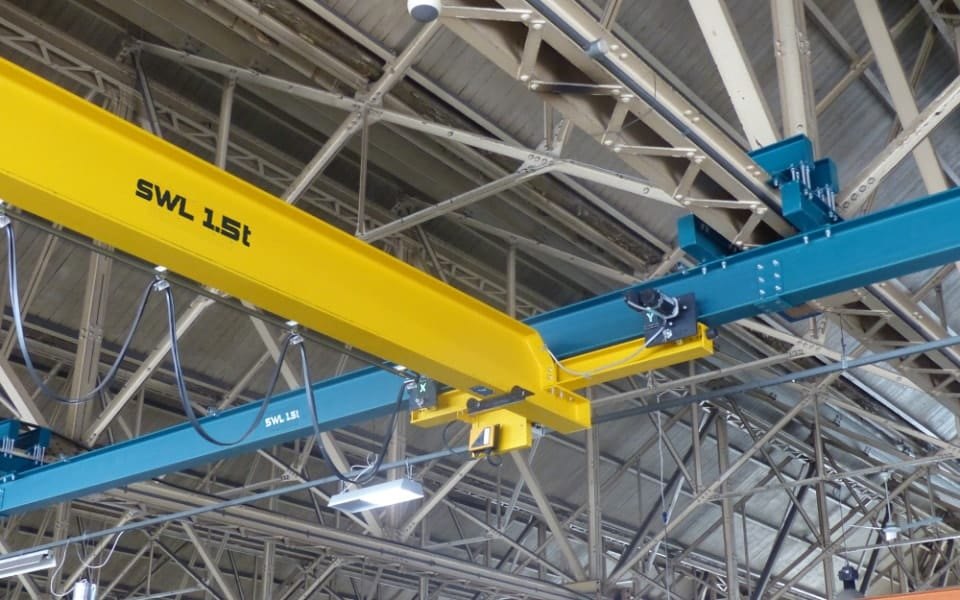

  • Single Girder Under Running Bridge Crane

    Also known as an underhung crane, this design features a single girder that is supported by the roof structure rather than by elevated runway beams. The trolley and hoist run underneath the girder, and the crane itself can move along runway beams that are mounted directly to the ceiling. This setup maximizes the available headroom beneath the crane, making it ideal for facilities with limited floor space. Under-running single girder cranes are typically used for light to medium loads, up to about 10 tons, and are common in precision manufacturing, assembly operations, and areas where floor space must remain clear.

Recent Projects

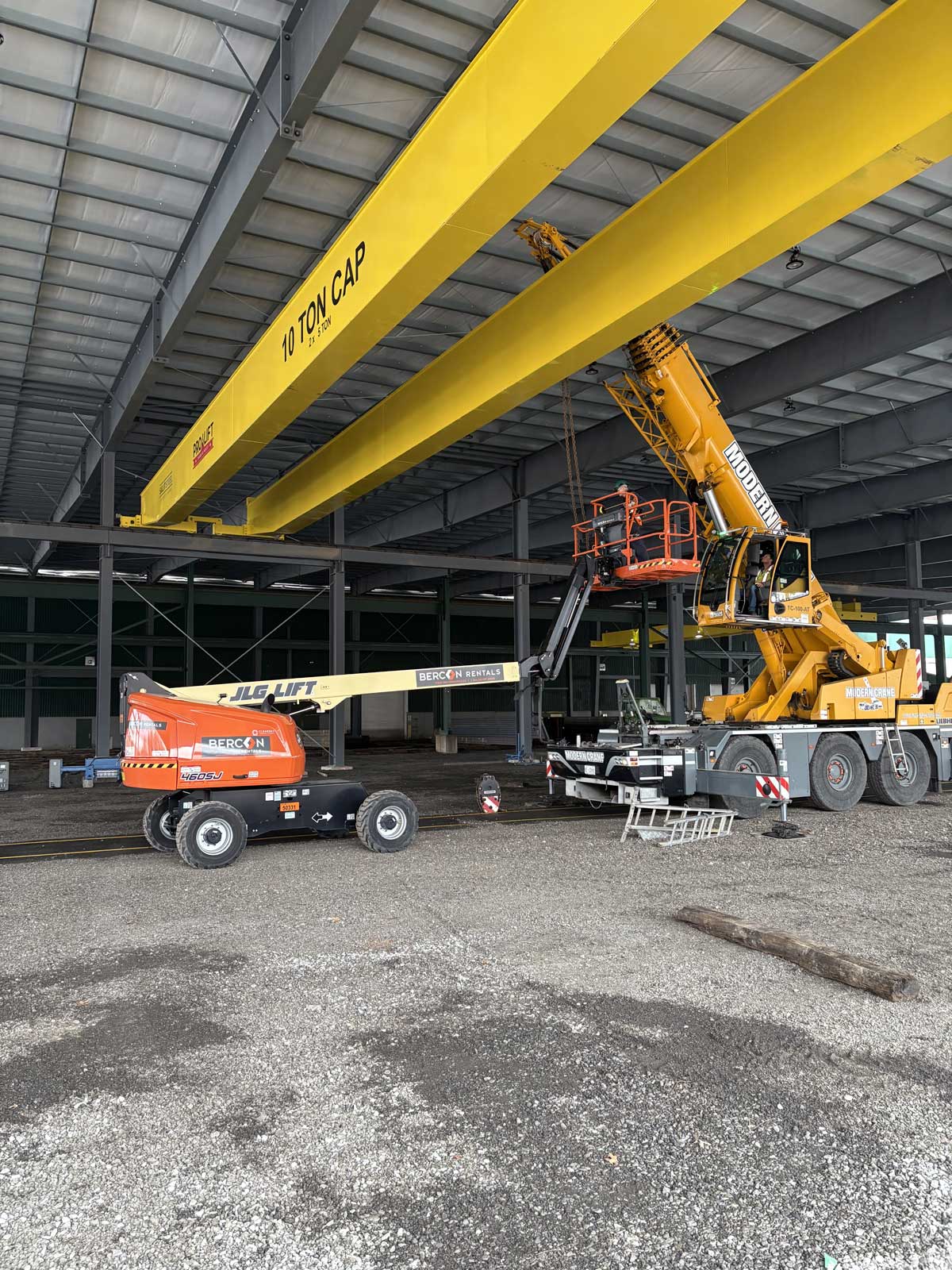

Steel Service Centre in Ontario - 113’-0” Span Double Girder Top Running Bridge Crane

Prolift Crane & Hoist Inc. proudly delivered and installed its largest-span overhead crane to date, featuring a 113′-0″ bridge span, CMAA Class D duty rating, and a 10-tonne lifting capacity.

This custom-built system incorporates twin 5-tonne electric wire rope hoists with VFD-controlled motions:

  • Hoist: 40 fpm
  • Trolley: 160 fpm
  • Bridge: 200 fpm

The crane includes an A/B/both hoist selector circuit and a wireless radio remote control for flexible and efficient operation. A milestone project showcasing Prolift’s in-house engineering, manufacturing, and turnkey installation capabilities.

Bridge Cranes

FAQ

Prolift covers 250 lb capacity to 100 Ton capacity, and spans of up to 132’-0”.

A single-girder crane is typically used for lighter capacities and shorter spans, offering a cost-effective solution. A double-girder crane provides higher lifting capacity, greater hook height, and longer spans. Prolift can assess your building, application, and production needs to recommend the ideal configuration.

Lead times vary depending on the crane class, capacity, span, and electrical requirements. Most standard cranes follow a 4–12 week cycle from engineering to commissioning, while custom or large-scale systems may require additional time. Prolift provides detailed schedules during the quotation and design phases.

Overhead cranes must comply with CSA B167 and CMAA guidelines. Requirements include frequent inspections (daily/weekly) and periodic inspections (monthly or annually) depending on duty class and usage. Prolift offers full inspection programs, preventive maintenance, and load testing services.

Yes. Prolift provides complete turnkey solutions including engineering, fabrication, electrification, installation, load testing, certification, and after-sale service. We support our customers through the entire lifecycle of their lifting equipment.
