Monorails

Lorem ipsum dolor sit amet.

A monorail crane is a type of overhead crane that consists of a single beam configuration, allowing the hoist to move in a straight or curved path. The monorail beam is typically attached to the ceiling or supported by columns within the facility. The hoist, which is mounted on a trolley, runs along the monorail beam to lift, and transport materials along the predetermined path.

Monorail cranes are ideal for processes that require linear movement of materials across areas where extensive lateral movement is not necessary. They are commonly used in production lines, assembly operations, and other applications where space is limited, and specific routes need to be followed regularly. This type of crane is particularly effective in streamlining workflows and increasing efficiency in environments with a high volume of repetitive movements.

PRO LIFT CRANE & HOIST

Types of Monorails

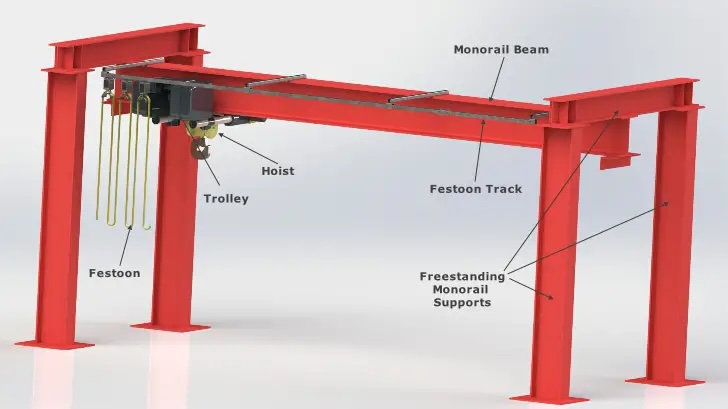

  • Freestanding Monorail Systems

    Freestanding monorail systems are supported by their own steel columns and structural framework, transferring all loads directly into the floor slab or foundation.

    Key characteristics:

    • Independent of the building structure
    • Supported by columns anchored to concrete foundations
    • Suitable for facilities not designed for overhead lifting loads
    • Can incorporate straight runs, curves, switches, and multiple bays

    Benefits:

    • No reliance on roof or ceiling steel
    • Predictable structural performance
    • Ideal for retrofits, leased buildings, or older facilities
    • Easily expandable or reconfigurable

    Freestanding monorails are commonly used when building structures lack sufficient capacity or when future flexibility is required.

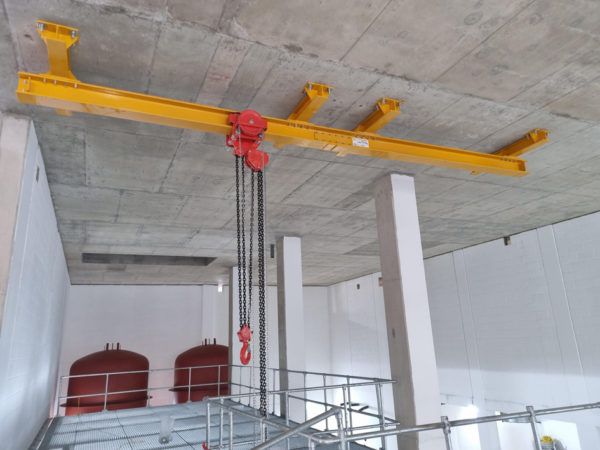

  • Ceiling-Mounted Monorail Systems

    Ceiling-mounted monorail systems are suspended from the building’s roof structure, joists, or structural steel using engineered hanger assemblies.

    Key characteristics:

    • Loads are transferred into the building structure
    • Requires adequate roof or beam capacity
    • Maximizes floor space by eliminating columns
    • Can follow complex paths, including curves and intersections

    Benefits:

    Clear floor space for equipment and personnel

    Clean, efficient material flow

    Ideal for high-traffic production environments

    Lower overall footprint

    Ceiling-mounted systems must be reviewed and approved by a qualified structural engineer to confirm the building can safely support all applied loads.

Monorails

FAQ

Prolift Crane & Hoist Inc offers turnkey monorail solutions, including system design, manufacturing, installation, and after-sales support. Prolift works closely with customers and their engineers to ensure each monorail system is safe, compliant, and optimized for its intended application.

A monorail system is an overhead material handling solution that uses a single fixed beam or track to move loads along a defined path. A hoist travels along the beam to transport loads between workstations, along production lines, or through maintenance areas. Monorails are ideal for repetitive, linear, or process-driven lifting applications.

Monorail systems can be designed for a wide range of capacities, from light-duty applications to heavy industrial loads up to 10 Ton capacity, depending on beam size, support spacing, and duty classification. The final capacity is determined by the hoist, runway structure, and supporting building or foundation.
